DX200

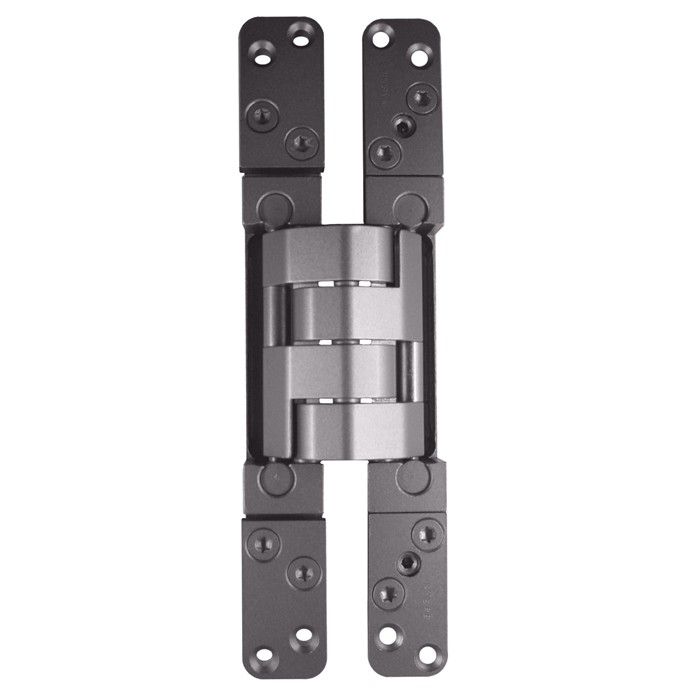

Pivota DX200 3D Fully Concealed Adjustable Hinge - Mild Steel - Satin Nickel Finish
- Certification: CE Marked
- Material: Mild Steel (MS)
- Door Thickness: 44mm
- Door Weight: 200kg
- EN 1935 Grade: Grade 14 160kg
- Fire Rating: FD60
- Finish: Satin Nickel
- Short Code: DX200
- Virtual Throw: 14.5mm
- Product Features: Non Cover Plates
| Quantity | Price |
|---|---|
| 1 - 11 | £214.78 £178.98 |
| 12 - 23 | £201.35 £167.79 |
| 24 + | £192.40 £160.33 |
Product Sample Service
To assist customers in their journey to selecting the right product for their project, we offer a product sample service.
Request sample formPivota DX200 3D Fully Concealed Adjustable Hinge - Mild Steel - Satin Nickel Finish
SKU: 3PIV-DX-200-3D-0-SNP-037917
Concealed hinges give your door a seamless appearance with clean lines, uninterrupted by protruding hinge knuckles. They’re the ideal choice both in terms of creating a modern, sleek look and maximising safety and security. With no protruding hinges the door system offers anti-burglary and reduced ligature benefits.
Maximum door weight 200 kg (per pair)
Concealed hinge for non-rebated doors
Hinge leaves are mortised into frame and door
3-dimensional adjustability
Maintenance-free bearings
Suitable for use on timber, steel and aluminium door systems.
Available accessories:
Receiver Plate for Steel Frame
Hinge Retainer Plate for Casing and Steel Frames
Installation accessories:
Universal Routing Kit
Router Template (2 Part Door & Frame)
Intumescent Kit (White or Black)
Section Drawing
