Light, Medium & Heavy Duty Continuous Piano Hinges

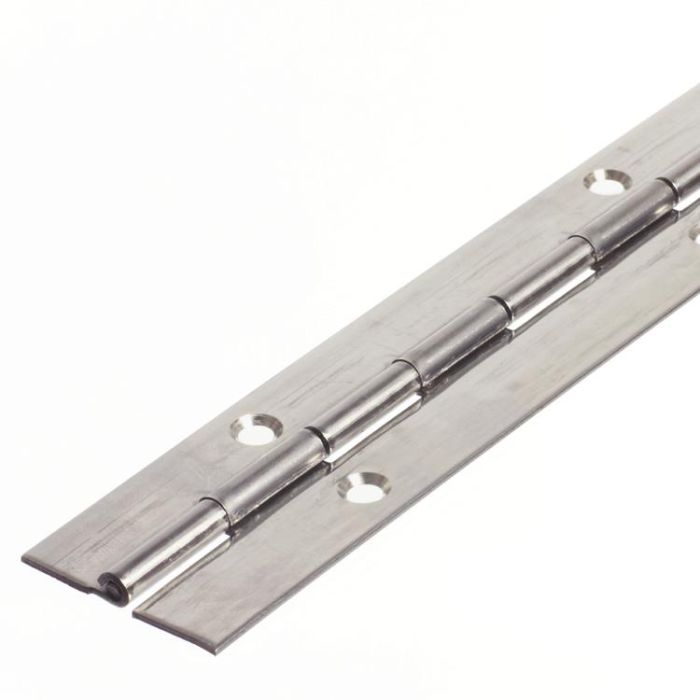

6406 Medium Duty Continuous Piano Hinge - Mild Steel - Self Colour - In-line Holes 1829 x 38 x 1.6 x 3.3mm Pin
- Material: Mild Steel (MS)
- Open Width: 38mm
- Gauge: 1.6mm
- Finish: Self Colour
- Holes: In-line Holes
- Countersink Size: #8 Woodscrew
- Pin Diameter: 3.3mm
- Length: 1829mm
- Size: 1829mm x 38mm
| Quantity | Price |
|---|---|
| 1 - 3 | £10.48 £8.73 |
| 4 - 24 | £9.22 £7.68 |
| 25 + | £8.38 £6.98 |
6406 Medium Duty Continuous Hinge - Mild Steel - Self Colour - In-line Holes 1829 x 38 x 1.6 x 3.3mm Pin.
SKU: 4640611182906
The 1.6mm (0.064", 16 gauge) hinge leaf thickness a middle weight of the thicknesses within the group of medium duty continuous hinges. A generally much sturdier hinge than the 1.2mm range, these products fulfill a wide range of commercial and engineering applications.
A - Hinge leaf thickness - 1.6mm
B - Hinge pin diameter - 3.3mm
C - Hinge open width - 38mm
L - Overall continuous hinge length - 1829mm
D - Hinge knuckle length - 25.4mm
E - Hole centres - 101.6mm
F - In-Line Holes. C'sk No.8 or plain hole 6mm dia
All holes are pierced in pairs directly opposite each other on opposite flaps, staggered holes can be supplied to special order.
