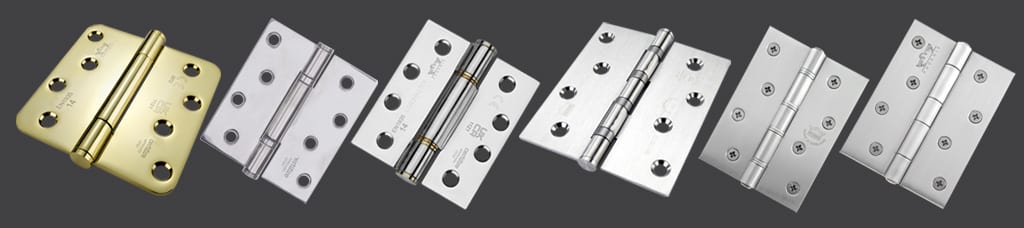

6 Architectural Butt Hinges

No ifs no butts – Choose butt hinges from Cooke Brothers

The Butt hinge is perhaps the most common architectural hinge there is. But that doesn’t mean it’s common-or-garden. Far from it. There is still a lot to know about the different types and the diverse ways they can be used, playing a pivotal role – if you’ll excuse the pun – in a door spec, both practically and aesthetically.

So what is a butt hinge exactly?

It gets its name from the fact that the two leaves – usually equal – are morticed into both the door and the frame so that they butt up against each other when the door is closed so that only the pin and the knuckle are visible. They are usually made from steel, stainless steel or brass but other materials, and many finishes, are available making them a practical and attractive addition to a door hardware scheme.

Here at Cooke Brothers, as Master hinge makers, we know our way around a butt hinge. So much so that we make six different kinds, all of which have particular features that make them the right choice for different applications – from cabinets to large architectural doors. They are all designed and tested here in the UK by our experts using German advanced Polymer bearing technology where appropriate.

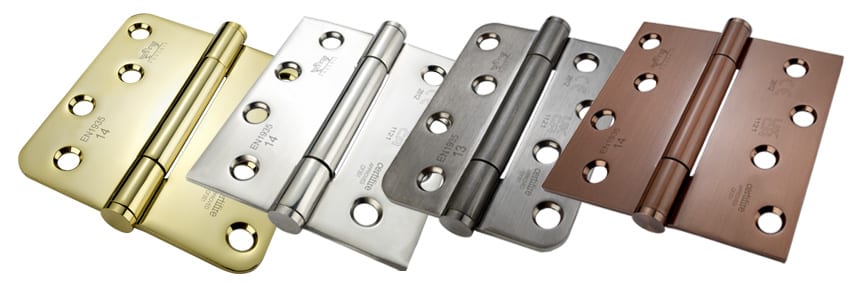

1. Concealed Bearing Hinges

Just as the name implies, concealed bearing hinges with their discreet, unobtrusive design, are often chosen to complement sleek, modern interior designs, where aesthetics play a crucial role and a slick, contemporary look as de rigeur.

And it’s not just streamlined design that makes them perfect for sophisticated residential projects, high-end commercial spaces and modern cabinetry. Exceptionally smooth operation  – thanks to the advanced polymer bushes inside that are designed to reduce hinge friction  – makes Concealed Bearing Hinges feel as good as they look in operation for a touch of luxury. Nothing spoils the aesthetics of a door hardware scheme more than oil leaking from the hinges – never a problem with Cooke Brothers Concealed Bearing Hinges, once again due to the ingenious maintenance-free polymer bushes that guarantee long-lasting good looks.

Cooke Brothers Concealed Bearing Hinges have been successfully tested, by an independent body up to an impressive 1,000,000 cycles, can support doors weighing up to a remarkable 160kg for the largest, heaviest door specifications, and are Certifire approved for use on fire doors.

At Cooke Brothers, we can offer either a fixed-pin 3-knuckle or lift-off configuration in standard satin polish or bright polish finishes, or a range of plated colours for ultimate design versatility.

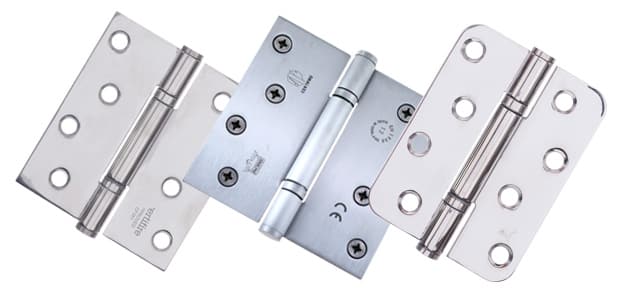

2. Shrouded Bearing Hinges

Cooke Brothers Shrouded Bearing Hinges take tough and versatile performance to the next level. They can be used on doors up to 120kg in weight and because they have been tested to operate seamlessly for 200,000 cycles, they are perfect for medium traffic applications, even fire doors (where they’ve been tested as part of door set of course). There’s even a corrosion-resistant version in the Cooke Brothers range that can withstand the harshest of conditions – even marine and industrial settings.

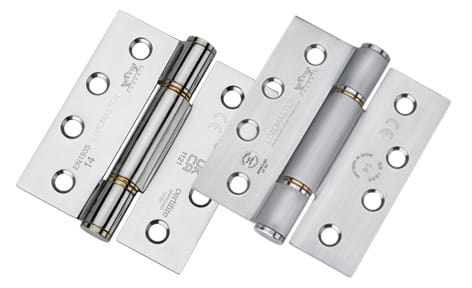

3. Loadmaster Hinges

When the going gets tough, Cooke Brothers Loadmaster hinges get going. Designed and engineered for the heaviest of doors and the toughest of environments, Loadmaster hinges can be found in offices, hospitals, schools and other high-traffic environments, working faultlessly for up to 200,000 cycles. They can used with a door closer on fire doors without any loss of performance and, what’s more, they can cope with doors that weigh up to a hefty 160kg, so they are equally at home for industrial, warehousing, and commercial applications.

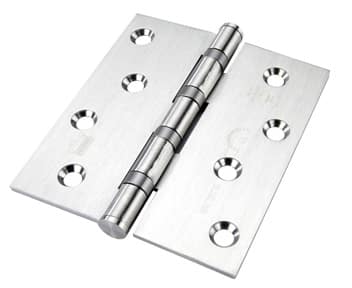

4. Slimline Architectural Butt Hinges

The name of these unobtrusive hinges belies their strength and durability. With a minimalist, space-saving design, slimline hinges can still withstand the toughest conditions – for up to 200,000 cycles. A small, strong hinge for high-traffic, secure, and fire doors they are the perfect choice for interior residential doors, compact offices, and cabinet hinges.

There’s a choice of finishes for any situation – the stainless steel version, for example, can withstand corrosive or maritime conditions with ease.

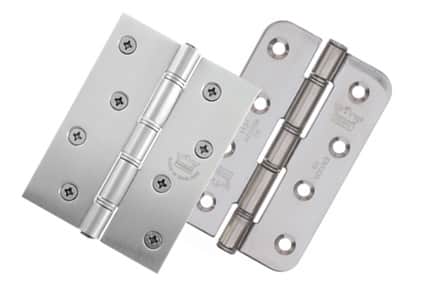

5. Double Washered Architectural Hinges

Cooke Brothers Double Washered Architectural Hinges represent a marked performance advancement over the traditional plain knuckled butt hinges. Their design incorporates a pair of precision-engineered, freely rotating steel washers, strategically placed to mitigate wear on the hinge knuckles. Some periodic lubrication is required to maintain optimal performance, but maintenance intervals are decidedly longer compared to their plain knuckle counterparts.

For light to medium-traffic commercial settings, like professional office spaces, these hinges are often the preferred specification, and some carry Certifire accreditation so they can be used on fire doors with an overhead or jamb-mounted door closer.

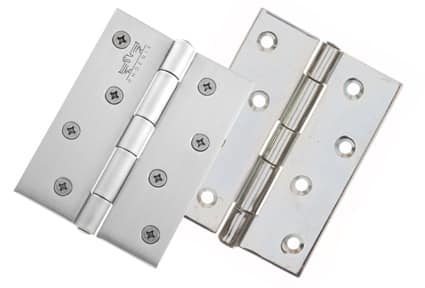

6. Plain Knuckle Hinges

With a pleasingly classic, traditional appearance, Cooke Brothers plain knuckle butt hinges, with their definitive five knuckles, can most commonly be found in traditionally styled homes, heritage buildings and other places where a timeless appearance is part of the design brief.  Their simple design uses the contact between the knuckle and the pin as the lateral and vertical wear face; so while they might not have the highest tolerance to wear and tear and cannot be used on fire doors, they are very popular in homes across the land where they will work happily for many years in low traffic conditions and as cabinet hinges.

Cooke Brothers’ range of butt hinges

As Master hinge makers, Cooke Brothers produce a butt hinge for any design or performance requirement. We understand that hinges aren’t just functional components – they’re the hidden heroes that ensure seamless movement, durability, and a touch of elegance to your door or cabinet. That’s why we test our hinges so rigorously – both in-house to a massive 10 million cycles and by independent test houses to 1,000,000 – that’s five times as many as the standards require.

Naturally, our product offering extends beyond the six butt hinge ranges listed above. From lift-off and cranked hinges to self-closing, glass door, and cabinet hinges, our inventory likely includes any type of hinge you require. For additional information, you can explore our full range. Our comprehensive catalogue also features a selection of twenty-two standard finishes to complement any design aesthetic you may have in mind. Should your design vision require something more unique, we offer the option of special finishes as well.

Discover the low down on all of the butt hinges and full technical and specification details.
