Pivota Hinges: The Hidden Gem in Contemporary Design

Pivota concealed hinges: ideal for minimalist commercial settings, approved for fire doors, engineered for larger doors, and offer three-way adjustability.

Designs for your Setting

While maximalism may be making a small comeback in residential design, minimalism still reigns supreme in commercial settings. A ‘less is more’ style that emphasises simplicity and the use of minimal elements to create a serene and uncluttered space that focuses on the essentials rather than excess with every piece of furniture and decor chosen with purpose and intention, ensuring that each item serves a functional need or contributes to the aesthetic harmony of the room.

To achieve this sophisticated simplicity, the hardware on the flush doors favoured by minimalists must be both ingenious and work hard. And nowhere is that more important than the hinges.

That’s where our Pivota concealed hinges come into their own since they are completely hidden when the door is closed: the hinge is mortised into the frame, and the door has no protruding knuckles to spoil the clean flush lines.

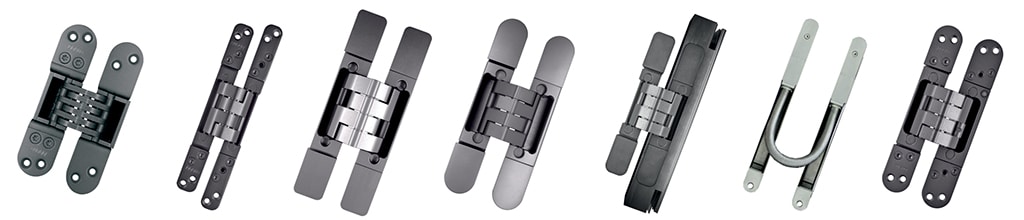

Cooke Brothers Pivota Concealed Adjustable Hinges are engineered to blend aesthetics and functionality and manufactured with meticulous attention to detail for seamless operation. They are ideal for settings with a contemporary, luxe vibe, like hotels, boutiques, spas, offices, and top-end homes.

Read our concealed hinges technical information.

Pivota’s Aesthetic

At the heart of Pivota hinges is the cutting-edge polymer-bearing technology; they minimise friction, facilitating a supremely smooth, maintenance-free hinge movement without any risk of unsightly oil leakage. And they are available in a huge range of finishes that range from businesslike satin stainless steel to a very modern black/grey, from a traditionally appealing polished brass to the designers’ current favourite, bronze, light, dark or red.

But please don’t be fooled by the Pivota’s pretty face – they are much more than that. These hinges are approved for fire doors, engineered from solid steel or solid aluminium so are capable of supporting larger, heavier doors up to 300kg, and have been rigorously tested to an impressive number of cycles, ensuring both safety and durability.

Standing out from the crowd

What makes the Pivota stand out from the crowd is its three-way adjustment capability so that it always works smoothly and effortlessly:

1. Compression adjustment between door and frame seal
2. Variable height adjustment
3. Lateral plane adjustment

This three-way adjustability makes for precise door adjustment without having to remove or interfere with the door for a seamless appearance on flush doors. At the same time, the small dimension of the hinge body means they can be used even in cases with narrow rebate depths and small panel breadths.

Light-duty versions are available for doors up to 60kg, medium-duty for loads up to 80kg, and heavy-duty hinges are available for the largest doors up to a massive 300 kilograms. For these largest doors, Pivota’s four-knuckle joint meshes together to prevent twisting or tilting, even under high stress, making the PIVOTA an ideal choice for heavy doors since all the force is absorbed by the horizontal axes to guarantee a high degree of reliability.

Why choose Pivota?

In commercial design, where minimalism is vital and flush doors are popular, achieving an uncluttered and purposeful aesthetic is essential. Pivota concealed hinges are the epitome of this philosophy, ingeniously designed to blend seamlessly into flush door designs. These hinges offer a smooth, maintenance-free performance with a variety of finishes to complement any contemporary setting. Ideal for luxury hotels, spas, and high-end homes, Pivota hinges combine functionality and aesthetics, ensuring reliability and style.

For expert advice and to explore the perfect hardware solutions for your minimalist flush door designs, get in touch with the Cooke Brothers team.
