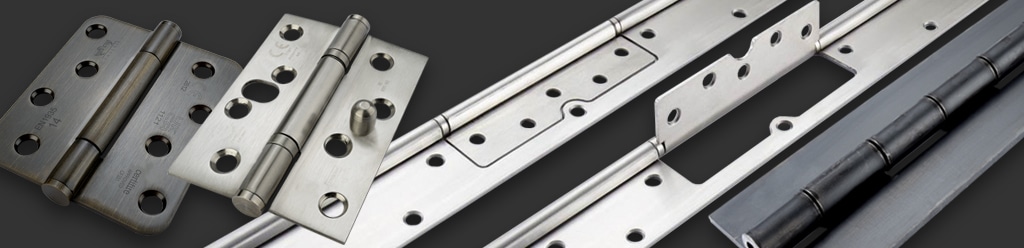

Secure Your Space: A Guide to High-Security Door Hinges

In today’s world, security at a physical level is of paramount importance, particularly in high-risk environments. And that includes more than just the obvious settings like banks, defence areas, and commercial and industrial facilities. Many residential projects now also feature high security doors to protect assets, data, and people from unauthorised access and potential harm. But there is no point in a steel, bullet-proof door leaf if its hardware is not up to the job. And that applies to hinges as much as any other part of the door set.

Specification Considerations for High-Security Door Hinges

There are several considerations when specifying the correct hinge for a high-security door, including design, material and load capacity:

1. Tamper-Resistant Design

The construction should incorporate tamper-resistant features, such as hinge bolts (commonly known as dog bolts) or welded hinges. These elements deter unauthorised access by making tampering with the hinge mechanism extremely challenging.

Cooke Brothers Range

At Cooke Brothers, we produce a wide range of hinges with dog bolts. They prevent the door from opening, even if an attacker removes the hinge pin or cuts the hinge knuckle completely and stops the hinges from being lifted off. A fixed metal bolt is securely installed in the door’s edge, while a metal receiving plate is affixed to the door frame. Upon closing the door, the bolt automatically locks into the receiving plate, significantly enhancing the door’s resistance to forced entry, including attempts such as kicking, prying with a crowbar, or other physical attacks. These dog bolts add an extra layer of security, stopping the intruder from simply lifting the door off its hinges and securing the door even if the hinges are cut, crowbarred or otherwise forcibly removed.

Cooke Brothers also makes a range of welded hinges; we flush weld the hinge pin at either end of the knuckle, adding extra weld fillets to help prevent the hinge knuckles from being forcibly uncurled.

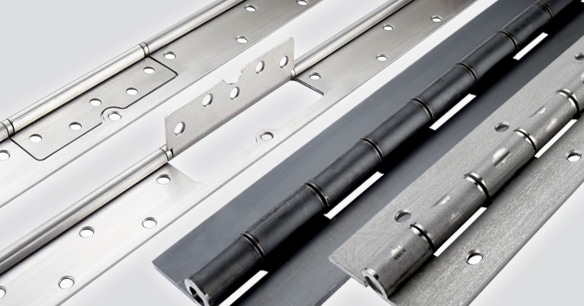

Our heavy duty architectural Continuous (or piano) hinges also have inherent durability and security, making them an excellent choice for security doors. These heavy-weight hinges support the door along its entire length, allowing for greater load-bearing capacity, accommodating heavier doors and hardware, and bolstering both the door and its frame with enhanced stability, strength, and longevity. Their design offers a near-impenetrable defence against tampering and attack, as the continuous knuckle design provides minimal leverage for any potential intruders or vandals seeking to employ tools for nefarious purposes. Moreover, they exhibit reduced ligature properties, making them ideal for secure or healthcare facilities where safety is paramount. This holds particularly true for our interleafed hinge variations, which require no rebating and reduce the gap between the door and frame to a mere 3mm instead of the standard 12mm.

2. Material

High-security hinges need to be made from heavy-duty materials like stainless steel if they are to last a lifetime and potentially resist attack. These materials offer excellent strength and resistance to corrosion, making them ideal for long-term security. This is why Cooke Brothers security hinges are constructed using heavy-duty materials and welded in-house to enhance their security properties. Additionally, to make them resistant to rust, corrosion, chemicals, and moisture with a tremendous weight-to-strength ratio.

3. Load Capacity

High-security doors are often heavier due to added security features. The correct hinge to cope with the higher load from high security is essential if the hinges are going to perform flawlessly without sagging and dropping. We have produced a comprehensive guide to calculating hinge load capacity to help ensure that the right hinges for the job are specified.

4. Fire Rating

High-security doors must often meet fire safety regulations, so hinges must be specifically rated and tested for fire resistance.

5. Maintenance

At Cooke Brothers, we make a range of maintenance-free hinge options, so the door’s security will not be compromised by hinges breaking down over time. Our Concealed bearing hinges have advanced polymer bushes hidden inside for maintenance-free operation. An impressive 32-year guarantee demonstrates our faith in this technology.

6. Finish

Security hinges and security doors still need to look good and integrate seamlessly into the aesthetics of the door. At Cooke Brothers, we can offer a range of finishes, including plated, coated, polished, powder-based, and PVD coatings. We can even do gold plating! The finish will help to withstand environmental factors, including UV exposure, humidity, and temperature fluctuations, to maintain both appearance and functionality.

7. Certification

Choose a hinge that meets EN 1935 certification requirements for standards compliance. This ensures that the hinges have undergone rigorous testing and adhere to established security standards.

8. Frame Compatibility

Ensure the selected hinges are compatible with the door frame’s design and material. Proper alignment, fit, and, crucially, the correct fixings are vital for the security and integrity of the whole door.

9. Number of Hinges

Doors with a security function need at least three hinges, making them more difficult to force. Fire Regs also require fire doors to be fitted with three hinges (which must be fire-certified). For heavier doors over 2200mm tall, then four hinges can be used to prevent warping.

10. Hardware Compatibility

Consider how the hinge integrates with other door hardware. Such as locks and access control systems; compatibility ensures a cohesive security system.

11. Budget

While it’s essential to consider cost v security criteria, it is vital to prioritise security and durability over cost-cutting measures, as security hinges are an integral component of a high-security door system.

Need some help?

As master hinge makers, Cooke Brothers has decades of experience supplying hinges for security doors. We know what an essential part hinges play in a door’s overall integrity and strength. Why not get in touch for advice on the best hinges for your next security door? We can assist you in making informed decisions for your premises. Contact us today to explore our range of high-quality security hinges and ensure the safety and protection of your space.
