A Buyer’s Guide to The Different Types of Hinges and Their Uses

Hinges might be small, but they’re one of the most critical components in any door or cabinet system. Choosing the appropriate door hinge is crucial, as it affects not only the functionality and durability of the installation but also its aesthetic appeal. At Cooke Brothers, we offer a comprehensive range of door hinges, each carefully designed and engineered for specific applications. This guide provides an overview of the main types of door hinges we supply and their ideal uses.

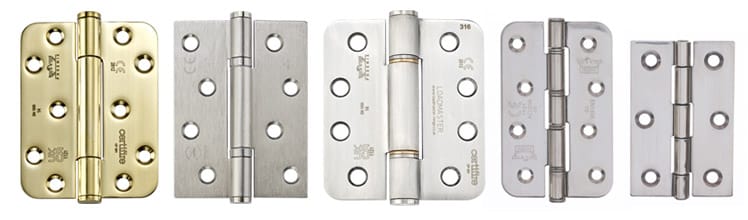

Butt Hinges

Butt hinges consist of two – often rectangular – leaves joined by a central pin, allowing doors to open and close smoothly. They are mortised into both the door and the frame for a flush fit.

Applications of Butt Hinges

Internal and External Doors: Suitable for residential and commercial properties.

Fire Doors: When manufactured to the correct specifications, CE marked, and tested, they can be used on fire-rated doors.

Browse Cooke Brothers Butt Hinges

Concealed Bearing Hinges

Concealed bearing door hinges are sleek and robust hinges available in either a fixed-pin 3-knuckle or lift-off configuration. Concealed advanced polymer bushes make for maintenance-free durability and aesthetic appeal.

Shrouded Bearing Hinges

Combining high-performance polymer bearing technology with a clean design, these are robust, reliable, high-performance hinges for medium-traffic commercial and residential environments.

Loadmaster Hinges

Designed for heavier doors up to 160 kg and 200,000 cycles, these robust hinges are ideal for high-traffic commercial and domestic applications requiring a heavier door.

Washered Knuckle Hinges

A pair of freely rotating steel washers to reduce wear to the knuckles make these double-washered hinges a significant, lower-maintenance upgrade to plain knuckled butt hinges.

Plain Knuckle Hinges

Providing a simple and reliable hinge solution for internal and external doors.

Lift-Off Hinges

Lift-off hinges allow doors to be removed from their frames without unscrewing the hinges. This feature is particularly useful for applications requiring frequent removal or for easy installation, cleaning and maintenance.

Application of Lift-Off Hinges

Emergency access points: Including bathroom doors or escape routes where quick door removal may be needed.

Temporary or modular installations: Including exhibition stands, stage sets, or movable partitions where doors or panels need to be removed and reinstalled easily.

Industrial and commercial: Machine covers, access panels, and electrical or mechanical cabinets that require regular maintenance. Also, service and plant areas like plant rooms, riser cupboards, and service panels that need routine inspection.

Browse Cooke Brothers Lift-Off Hinges

Concealed Bearing Lift-Off Hinges

These hinges combine the aesthetic and practical benefits of concealed bearings with the practicality of a lift-off design.

Loadmaster Lift-Off Hinges

These are designed for heavy-duty applications requiring both high load capacity and lift-off functionality.

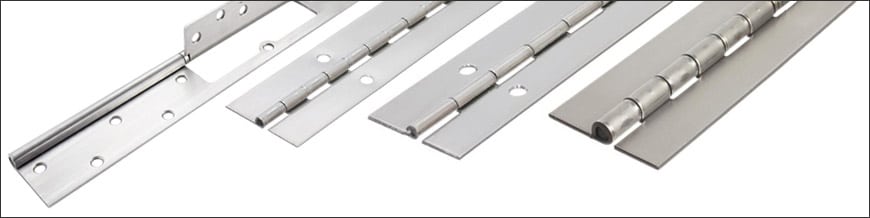

Continuous Hinges (Piano Hinges)

Continuous door hinges run the entire length of the door, distributing weight evenly and reducing stress on the door and frame.

Applications of Piano Hinges

High-traffic areas: Ideal for doors subject to frequent use, such as in schools or hospitals.

Full-Length Panels: Suitable for applications requiring additional support along the door’s length.

Security Doors: Continuous hinges are tamper-resistant and are often used on high security doors.

Browse Cooke Brothers Continuous Hinges

Continuous Hinges

Light, medium and heavy-duty versions of Cookes continuous hinges make the perfect options for any project from a delicate cabinet to a heavy-duty door.

Interleaf Continuous Hinges

These door hinges uniquely combine the strength of continuous fixing points along the entire length of the door with the benefit of an anti-finger trapping design.

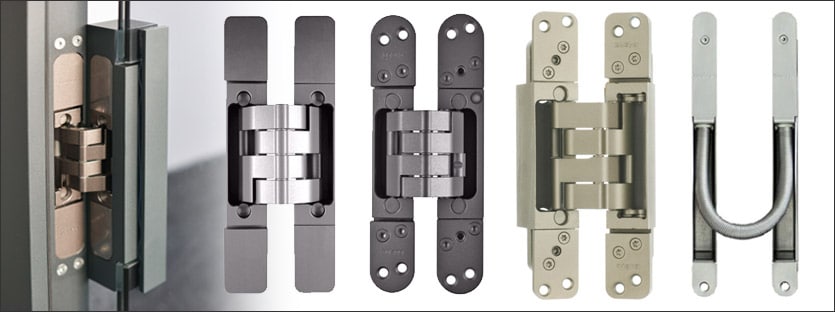

Concealed Hinges

Concealed door hinges are hidden from view when the door is closed, offering a clean and unobtrusive appearance.

Applications of Concealed Hinges

Flush, Frameless and Invisible Doors: Perfect for achieving a minimalist aesthetic in modern interiors.
Glass doors

Browse Cooke Brothers Concealed Hinges

Concealed Hinges

Light-, medium- and heavy-duty concealed door hinges in various designs and finishes for a sleek, minimalist design of flush-fitted doors.

Self-Closing Concealed Hinges

Combine a sleek, hidden design with built-in closing functionality to achieve a minimalist finish without needing separate door closers.

Hinges for Use with Cladding

To accommodate doors with additional cladding materials.

Glass Door Hinges

Specialised hinges tailored for glass door installations.

Power Transfer Concealed Hinges

Allow electrical power transfer through the hinge to door-mounted electronic devices.

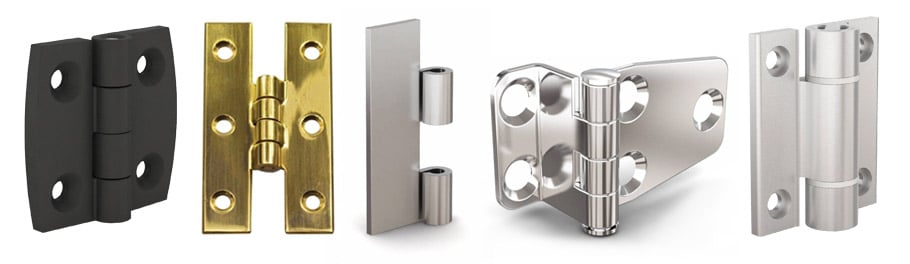

Cabinet Door Hinges

Cabinet hinges are designed for furniture and cabinetry, providing smooth operation and durability.

Applications of Cabinet Hinges

Cabinet doors and furniture
Marine lockers and seafront applications
Specialised cabinets that need to spring open or closed

Browse Cooke Brothers Cabinet Hinges

Polymer Cabinet Hinges

Ideal for light to medium-duty applications, these hinges provide durable performance and can be fixed using adhesive or screws.

Brass Cabinet Hinges

A specially curated selection of brass hinges in various designs to bring cabinetry to life.

Heavy Duty Modular Hinges

With components available in mild and stainless steel, and in thicknesses of 3mm, 4mm, and 5mm, these hinges are apt for robust applications requiring lift-off flag and knuckle butt styles.

Marine Hinges

Crafted for environments exposed to the elements, these high-quality hinges come in styles like equal leaves, unequal leaves, cranked leaves, and counter-flap hinges.

Special Function Hinges

Featuring integral mechanisms that enable the hinge to spring open or closed, these hinges are for specialised cabinets that need specific functional movements.

Leading Supplier of Quality Door Hinges

From heavy-duty industrial doors to finely crafted cabinetry, choosing the right hinge is essential to long-term performance, safety, and a high-quality finish. At Cooke Brothers, we’ve spent over 150 years developing and refining a comprehensive range of door hinges to suit almost every application – whether it’s strength, appearance, adjustability or specialist functionality you’re after. Understanding the differences between hinge types is the first step towards making the right choice.

Contact us for expert advice on the best door hinge solution for your needs.
