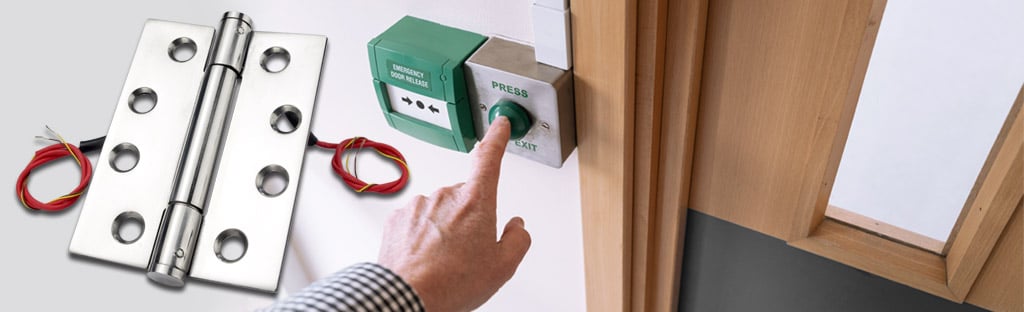

Conductor Hinges Explained: A Smarter Way to Power Your Doors

Understanding Conductor Hinges

When a door needs power, a conductor hinge offers a straightforward solution. Whether you’re working on a high-end residential project, a secure facility, or a commercial building with access control requirements, conductor hinges provide a neat, tamper-resistant way to connect power to the door leaf without messy surface cabling.

A conductor hinge is a specially designed architectural hinge that integrates electrical conductors within the hinge body. It allows power and signals to pass from the door frame to the door leaf without visible wiring or flexible loop cables. This means you can power electromagnetic locks, electric strikes, access control readers, sensors, panic exit systems with electric release, fire/smoke air transfer grilles, or automatic opening systems without compromising aesthetics or safety. At Cookes, we can supply conductor hinges with 2,4,6,8 or 12 wires capable of carrying 48v at two amps.

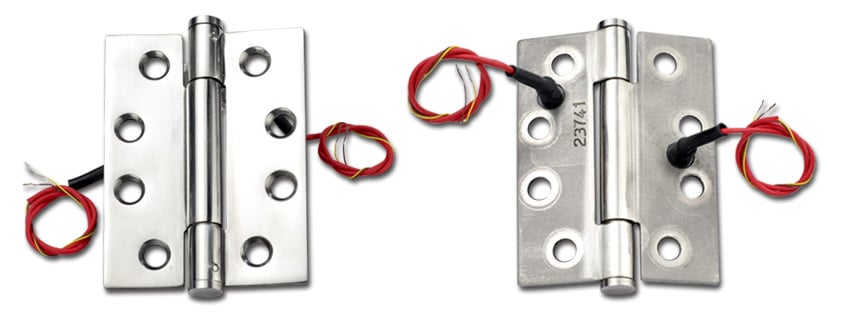

Power Transfer Hinges

The electrical transfer is concealed entirely within the hinge, so there’s no visible wiring, no compromise on the door’s appearance and no pinch points or vulnerable cable loops. The design allows full, natural door movement with the same opening angles and durability you’d expect from any Cooke Brothers architectural hinge.

And once you start looking for these hinges, you’ll see them everywhere in settings as diverse as commercial buildings powering access-controlled doors, healthcare buildings for automatic doors, secure facilities on electrically locked doors, public buildings and schools to integrate with electronic locks and alarm systems, and residential apartments, helping to provide powered entry solutions.

As well as single-conductor hinges for simple applications requiring one live conductor, at Cooke Brothers, we can provide conductor hinges with multiple points for when power and signal are both needed and multiple-conductor hinges for more complex setups, including doors with sensors and motorised hardware.

All of our conductor hinges are manufactured to our usual exacting standards and are available in a variety of finishes to suit the overall door design. They are made from high-quality stainless steel for strength, corrosion resistance, and long service life. All of the internal conductors are insulated and protected within the hinge body to avoid wear or electrical failure, and the result is a hinge that performs as well electrically as it does mechanically.

Cooke Brothers conductor hinges are designed to carry low-voltage DC power, typically in the 12V to 24V range: the capacity varies depending on the conductor configuration, but all are rated to handle the most common requirements for powered door hardware. If you are unsure about the configuration you need, we are always happy to help you find the right product for your project.

Conductor hinges are straightforward to install, especially when specified at the design stage. They’re fitted just like a standard architectural hinge, with clear connection points for the electrical wiring. We supply technical data and installation guidance for all our conductor hinges to help ensure a trouble-free fit on site. And maintenance is minimal thanks to the robust, protected design. Just periodic checks to ensure connections are sound and no external damage has occurred.

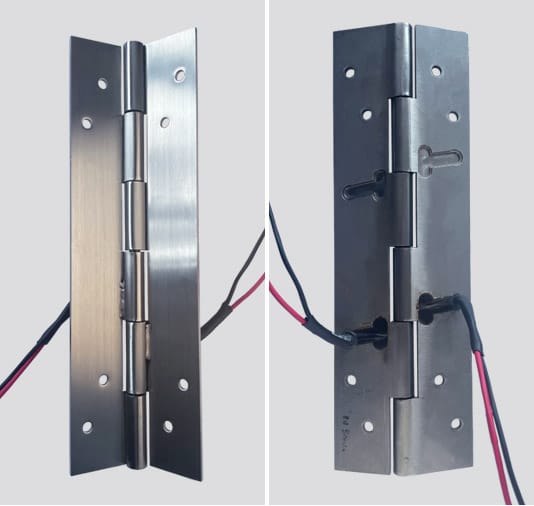

Continuous Conductor Hinges

We also manufacture conductor versions of our Continuous Hinges, which are perfect for doors in high-traffic or secure environments. They combine the benefits of concealed wiring with the strength of a tamper-resistant full-length hinge. This means they are often used in environments like hospitals, secure centres, and education settings, where doors see frequent use and are vulnerable to damage.

Just a note of caution: conductor hinges are not load-bearing. They are designed purely for the transmission of power or signals. You’ll still need to install the correct number of load-bearing hinges to support the weight of the door, ideally from the same Cooke Brothers range, to ensure matching size, function, and finish.

Conductor hinges are a simple, smart way to bring power and control to doors to integrate electronic access, automate door opening, or simply for a tidy solution to cable transfer; Cooke Brothers’ conductor hinges deliver reliable performance in one sleek package.

Contact Cooke Brothers for more information

If you’re specifying doors for a powered system or planning an access control installation, talk to us about our conductor hinge range. If you’re unsure which configuration is right for your project, our team will be happy to advise.
