Adding Flush-Fitting Doors? Why You Need Concealed Hinges

Flush-fitting doors are a popular choice for interiors where clean lines and a contemporary finish are key. The goal for high-end residential, hospitality, commercial or office environments is often the same: to achieve a uniform, minimal look. But the secret to a successful flush door isn’t just in the door leaf or frame. To achieve a completely ‘invisible’ finish, the hardware matters too – especially the hinge.

Concealed hinges – sometimes called invisible or hidden hinges – are essential for creating that flush, frameless look. Not just for their aesthetic effect but for their practical benefits too, especially when it comes to durability, adjustability, and door performance over time.

So, concealed hinges are the go-to choice for flush-fitting doors – but how do you get it right?

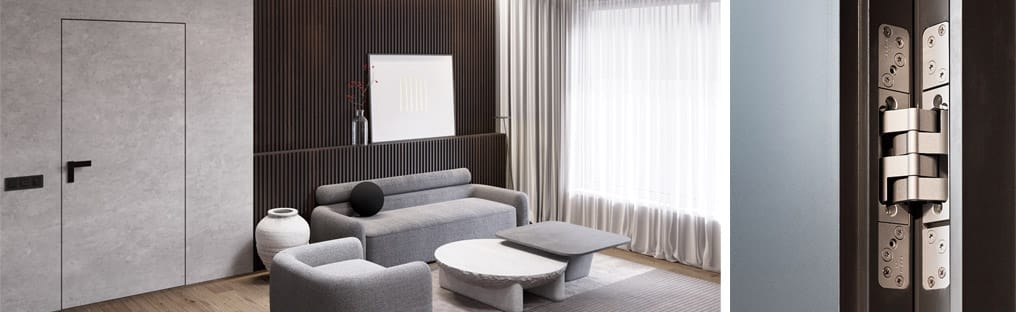

What is a Flush-Fitting Door?

Flush-fitting doors sit in line with the wall or surrounding surfaces. There’s no visible lip or step between the door and its frame, which creates a smooth, continuous surface. When closed, a flush-fitting door should appear almost as a sleek, discreet, and modern panel in the wall.

These doors are often used in minimalist interiors or spaces where visual clutter needs to be reduced, like galleries, office fit-outs, or high-end residential projects. They’re also increasingly used in bespoke joinery and cabinetry, where the quality of the finish is paramount. But to get this look right, every component must be considered – including the hinge.

Why Concealed Hinges Are Essential

A standard butt hinge will always be visible from one side of the door as the knuckle – where the two leaves are joined together – can always be seen. That’s fine in many applications, but if the goal is a truly flush-fitting, minimal finish, a visible hinge interrupts that aesthetic. Concealed hinges solve that problem. When the door is closed, there’s nothing to see: no protruding knuckle, no visible fixings, just a clean line.

The Benefits of Concealed Hinges

• Aesthetic Finish: Of course, the main driver is visual. A concealed hinge allows the door to sit perfectly flush in its frame, with no hardware visible when the door is closed. It’s the only way to achieve a genuinely frameless look.

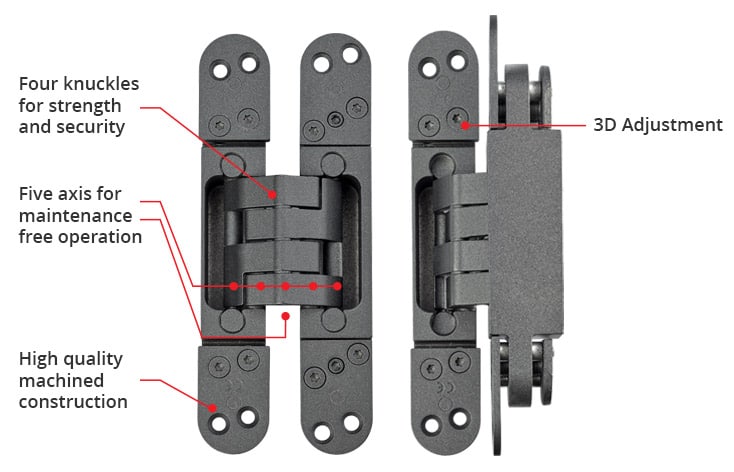

• 3D Adjustability: Our Pivota 3D concealed hinges are three-dimensionally adjustable. That means you can tweak the position of the door in the frame after installation – up/down, in/out, left/right – a critical feature when fitting flush doors, where tolerances are tight, and even a millimetre can make or break the look.
• Durability and Strength: Despite their hidden appearance, concealed hinges are certainly not flimsy. Cooke Brothers’ Pivota concealed hinge range includes light-, medium- and heavy-duty versions and even fire-rated options that perform reliably, even on heavy, high-traffic doors. With the correct specification, they’re suitable for commercial, public or residential buildings.
• Reduced Risk of Tampering or Vandalism: In public or semi-public environments, concealed hinges can offer an extra layer of protection by making it harder for the door hardware to be tampered with.

Design Considerations: Getting It Right

Achieving a flush finish is all about planning. If you’re working with an off-the-shelf door set, check that the frame and leaf have been designed for a flush fit. If it’s a bespoke door, speak to your joiner or door manufacturer early on about hinge requirements. Retrofitting a concealed hinge into a standard frame is rarely straightforward.

Things to Consider When Choosing a Concealed Hinge

• Load capacity: Flush doors often carry heavy finishes (like veneer or acoustic panels), so check that the hinge you’re specifying is up to the job.

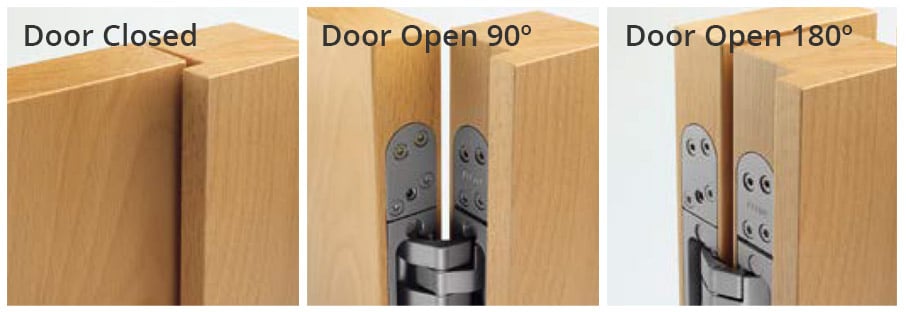

• Opening angle: Some concealed hinges open to 90°, others to 180°. Be clear about what’s needed for the space – is there enough clearance? What will the door be used for?
• Fire and safety compliance: Not all concealed hinges are fire-rated. If your flush door is also a fire door, make sure your hinge is tested, and CE marked accordingly. Obviously, you will need to consider the look of other hardware for the door, such as the door closer.

Cooke Brothers’ Pivota concealed hinge ranges include models that are fire-rated and suitable for both timber and glass doors, so they are ideal for flush-fitting door applications.

Installation Tips for a Perfect Result

Fitting concealed hinges takes some precision, patience, and attention to detail. It’s not difficult with the right tools and prep, but it’s not a job for guesswork. Here are a few best-practice tips:

• Use a jig: Most hinge manufacturers offer a routing jig to help you get the mortice spot on.
• Don’t skip the adjustment phase: Once fitted, take the time to fine-tune the door position using the hinge’s adjustment screws. This ensures the door sits flush and operates smoothly.
• Consider maintenance access: Concealed doesn’t mean inaccessible. Make sure the hinge model you choose allows for easy removal or adjustment without dismantling the whole door.

Don’t Forget the Finishing Touches

Finally, don’t forget about coordinating hardware. If you’ve gone to the effort of achieving a sleek hinge detail, make sure locks, latches and handles are just as refined – either matching in finish or similarly minimalist in design.

Flush-fitting doors look, by their very nature, simple. However, they demand high attention to detail, and the hinge is a critical part of the system. Concealed hinges are the only way to achieve a truly seamless finish without compromising on performance. Whether you’re an architect, designer, joiner or specifier, getting the hinge right means you get the whole look right.

Need Advice on Concealed Hinges?

At Cooke Brothers, we’ve been making hinges for over a century. Our concealed hinge range is designed to perform where aesthetics and durability both matter.

Explore our full range of concealed hinges, or contact us for professional advice on specifying the right solution for your flush-fitting door project.
