Cooke Brothers launches a concealed self-closing hinge system

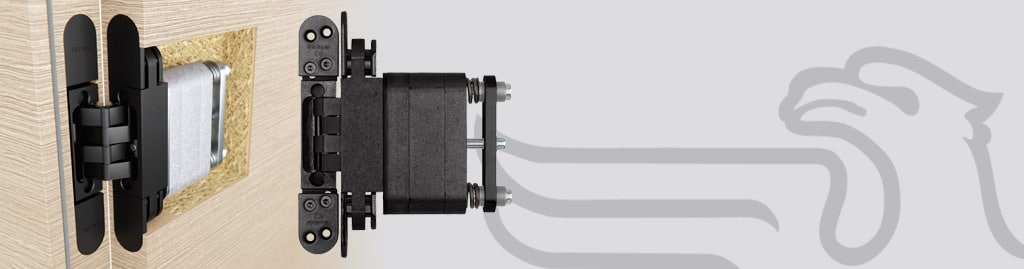

Master hinge-maker Cooke Brothers has introduced the Pivota Close, a concealed hinge system that also includes an integrated self-closing function that is designed for use on internal doors in premium commercial, residential, and hospitality settings. With a compact footprint combined with intelligent mechanical control, the Pivota® Close offers architects and specifiers a reliable alternative to visible surface-mounted closers that will not compromise accessibility, usability, or aesthetics.

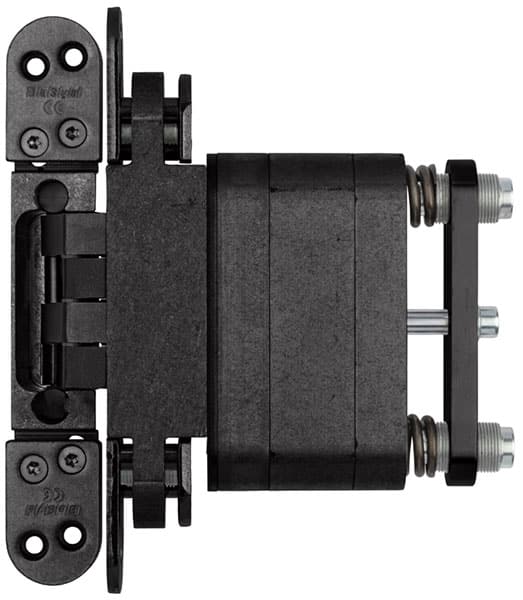

The Pivota® DXS Close includes two pre-tensioned springs and an adjustable viscous damping mechanism inside a fully concealed, three-way adjustable hinge body. The self-closing action engages at approximately 110°, allowing doors to be left open for general use and to close automatically and quietly when required. The integral damping function means a controlled, quiet latch engagement that supports user comfort and acoustic integrity.

The hinge is suitable for doors weighing up to 80kg and allows for a full 180° opening with minimal resistance, an important feature for users with reduced mobility or when doors need to remain fully open. The maximum operating force on a one-metre-wide door is just 6.9 Nm at 90°, with no additional drag or hold-open force required. The system eliminates the need for a third hinge or a separate closer, reducing component count and simplifying installation.

Three-way adjustability (height, depth, and lateral) supports precise alignment on site, even in challenging retrofit applications. The Pivota® Close is ideal for full-height, frameless or arched doors, where visual detailing needs to remain uninterrupted by hardware. It installs with standard concealed hinge routing and is available in a variety of finishes to complement a wide range of design schemes.

The Pivota® DXS Close is the latest addition to Cooke Brothers’ range of Pivota concealed hinges that includes models designed to meet specific loads, performances, and aesthetics. This latest development offers a discreet and durable solution that combines clean-lined design with functionality and user experience.

Cooke Brothers is an established UK manufacturer of architectural hinges and bespoke engineered hardware solutions with over 150 years of production heritage. The company supplies joinery manufacturers, door specialists, and architectural ironmongers across the UK with a range that combines in-house design, technical expertise and bespoke manufacturing capabilities that focus on durability, compliance, and performance across multiple sectors.
