DX80

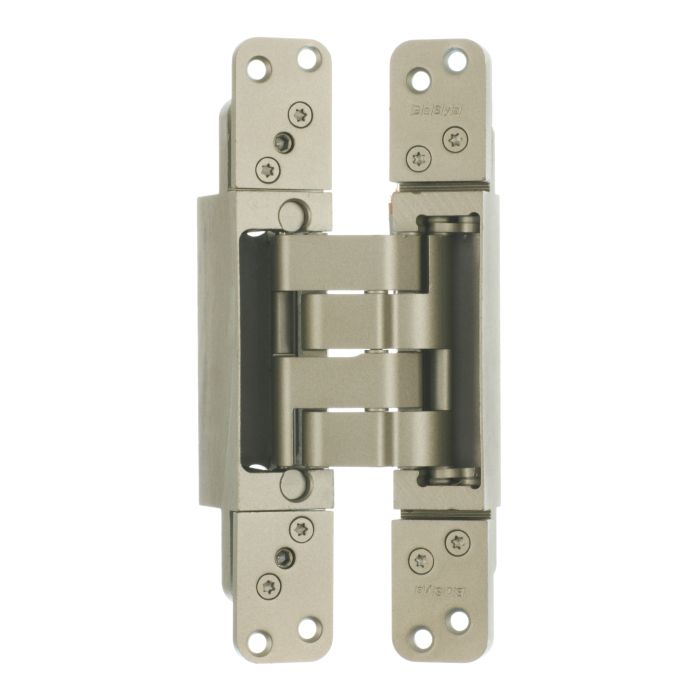

Pivota DX80 3D ZA Fully Concealed Adjustable Hinge - Aluminium - Satin Nickel Finish
- Material: Aluminium (AL)
- Door Thickness: 44mm
- Door Weight: 80kg
- Fire Rating: No Fire Rating
- Finish: Satin Nickel
- Short Code: DX80
- Virtual Throw: None
- Product Features: Non Cover Plates
| Quantity | Price |
|---|---|
| 1 - 11 | £112.86 £94.05 |
| 12 - 23 | £105.82 £88.18 |
| 24 + | £101.11 £84.26 |
Product Sample Service
To assist customers in their journey to selecting the right product for their project, we offer a product sample service.
Request sample formPivota DX80 3D ZA Fully Concealed Adjustable Hinge - Aluminium - Satin Nickel Finish.
SKU: 3PIV-DX-80-3D-ZA-0-SNP-040278
Concealed hinges give your door a seamless appearance with clean lines, uninterrupted by protruding hinge knuckles. They’re the ideal choice both in terms of creating a modern, sleek look and maximising safety and security. With no protruding hinges the door system offers anti-burglary and reduced ligature benefits. The offset design allows for cladding of up to 15mm to be applied on the frame side, suitable for use on timber, steel and aluminium door systems.
Maximum door weight 80 kg (per pair)
Concealed hinge for non-rebated doors
Hinge leaves are mortised into frame and door
3-dimensional adjustability
Maintenance-free bearings.
Available accessories:
Receiver Plate for Steel Frame
Hinge Retainer Plate for Casing and Steel Frames
Installation accessories:
Universal Routing Kit
Router Template (2 Part Door & Frame)
Section Drawing
